Cincinnati 220-153 Hypowermatic Horizontal Production Mill, As Taken From Service, 20-HP Spindle Motor, 36" Travel

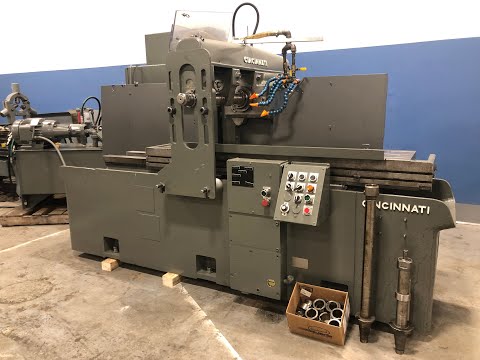

Cincinnati 220-153 Hypowermatic Simplex Horizontal Production Mill
Model No. 220-153 PL Hypowermatic
Serial No. 9B3P5P-3

This Standard 220-153 Hypowermatic mill has been retrofitted with a special table drive motor and external hydraulic pump to enable the table to feed at slower than standard rates.

Allen-Bradley PLC

Table Size: 15" x 63"
Table Travel: 36"
Vertical Adjustment of Head: 10"
Max. Dist. Spdl. Center to Top of Table: 14"
Cross Quill Adjustment: 3"
Spindle Speeds: 30 - 1200 RPM
Spindle Nose Taper: #50 MT
Hydraulic Table Feed Rates: 3/8 - 100 IPM
Machine Weight, Approx.: 12500 Lbs.

Equipped With:
Printed and Thumb Drive Copy of PLC Ladder Logic
Variable Speed Hydraulic Table Feed, Rack & Pinion
Automatic Backlash Eliminator
Spindle Speed Change Gears
Several Arbors with Spacers
Outboard Arbor Support
Automatic Lubrication
Outer Arbor Support
Inner Arbor Support

20-HP Spindle Motor Drive 230/460/3/60
10-HP Hydraulic Pump Motor

Very Good Condition
