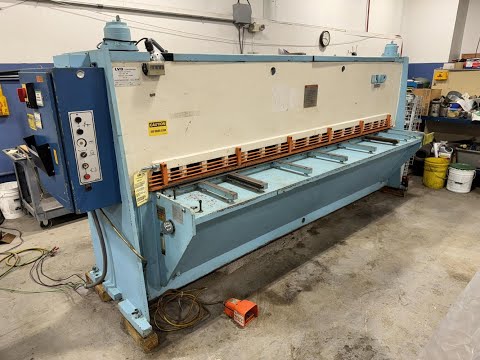

LVD Hydraulic Squaring Shear
Model No. JS-25/10
Serial No. 13349 New 1987

1/4" Shear Capacity
10' Shear Cutting Length
12 - 50 SPM Cutting Speed
30" Max. Back Gauge Range
126" Between Housing
18" x 127" Front Bed
(17) Hold Downs
13' x 78" x 72" High Overall Dimensions
12,000 Lbs. (Approx.)

Equipped With:
Front Operated Power Back Gauge
Adjustable Blade Clearance (Gap)
Adjustable Rake Angle
Foot Pedal Actuator

5-HP Motor Drive 230/460/3/60

Very Good Running Condition
